Equipment of the Pulsomat^® P35:

1. Base / Base addition

- Compressed air-powered piston in aluminium housing Ø31, liquid seals of FPM construction.

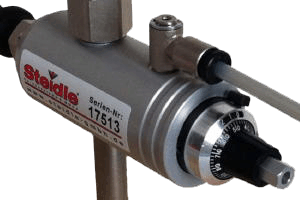

- Free adjustability of the fluid volume (up to max. 0.06 ml/stroke) including an indication scale from 0.00 to 7.00 at the PMC

-Seating ¼“ for reservoir 0.33-litre PA or push in connector Ø6 for fluid entry.

- Push in connector Ø4 for compressed air entry.

- Fixing bar Ø10 / 8.

2. Reservoirs (from 0.33 to 27 litres available):

Unit assembly

- Reservoir 0.3 litre PA, with screw cap, ventilation plug.

  Wall installation

- Reservoir 1.0 litre PE, with screw cap, ventilation hole, stopcock, feeding pipe L=1,500 and wall bracket (if required, with 2x round magnet Ø57).

- Reservoir 6.0-/10-/17-/27-litre Aluminium. With filler neck, screw plug, detachable sieve, automatic ventilation, drainage sieve stopcock and fill level display. With wall bracket of sturdy aluminium construction 40x40 with 4 steel clips for wall installation. Can be supplied with float switch min or min+max (potential-free, either NC or NO).

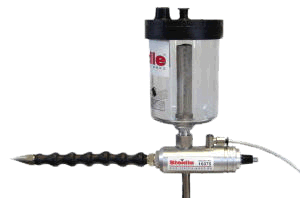

Reservoir 0.33-Litre

Reservoirs 6.0/10/17/27

3. Drive (electric, pneumatic or pedal-operated option):

- Solenoid valve 3/2 way (120 Nl/min) with auxiliary actuation (for occasional manual switching on/off). Coil with plug in 24V DC, 24V AC, 110V AC or 230V AC.

- Pneumatic valve 3/2 way (550 Nl/min).

- Pneumatic foot pedal switch 3/2 way(800 Nl/min). If required, with protection cap.

5. Nozzle options:

- As standard multi link tube (Ø13, L=170) with full jet nozzle, suitable for comfortable positioning. If required, this version can be converted into the short version.

- Also available as a short version with the full jet nozzle (Ø13, L=32) installed directly on the base unit, in case no space for the multi link tube is given.

Nozzle with multi link tube

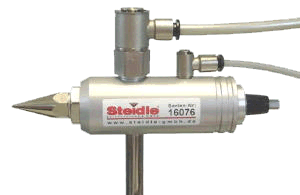

Nozzle direct on basic unit

6. Option

-Stand with switchable block magnet (55x50x80) or round magnet Ø80 and with articulated bar (Lmax=250).

- Pressure reducing valve including manometer for improved regulation of spray distance and profile.
