1. Base / Base addition

- Pneumatically driven, finely meterable piston pump with FPM seals, manually adjustable with PMC precise metering control, enabling easy adjustment of the volume using a dial. If required, pumps with double flow volume (2DF) with up to 0.06 ml per stroke are available.

- All pumps are standard synchronous drive. Separate drive, if required (all pumps individually or certain groups). The use of the logic panel enables all pumps to be operated using only one frequency generator./font>

- Ventilation unit integrated underneath the pump module.

- Frequency generator for pump pulses, manually adjustable 0 - 90 stroke min-1.

- A dedicated air valve for each nozzle, to enable the quantity of spray air to be adjusted.

- Pressure reducing valve to set spray air pressure. It also equalizes pressure variations in the supply tube and the system and ensures that the spray profile is even.

- Manometer (0 – 10 bar) in front of door to display spray air pressure. - Coupler plug NG8 for compressed air supply to left side of housing.

 - Air filter with integrated water separator and drainage opening on housing underside.

- High-grade push in/screw fittings/ pneumatic tubes.

- Stable, compact metal housing (200x200x155, 250x250x210, 300x250x210, or 400x400x210) with robust metal closer and door seal for dust protection and noise reduction, earthing pin.

- Connections for feed tube with EASY-COAX^® system (plug-in system for speedy, simple assembly, disassembly and interchange, including EASY-COAX^® twist-stop) on the left side of the housing.

- Component labelling in accordance with the designations in the pneumatic connection diagram.

- Numbering clips on every liquid conduit.



Pump modul L60

EASY-COAX^®

2. Reservoirs ((from 0.33 to 27 litres available):

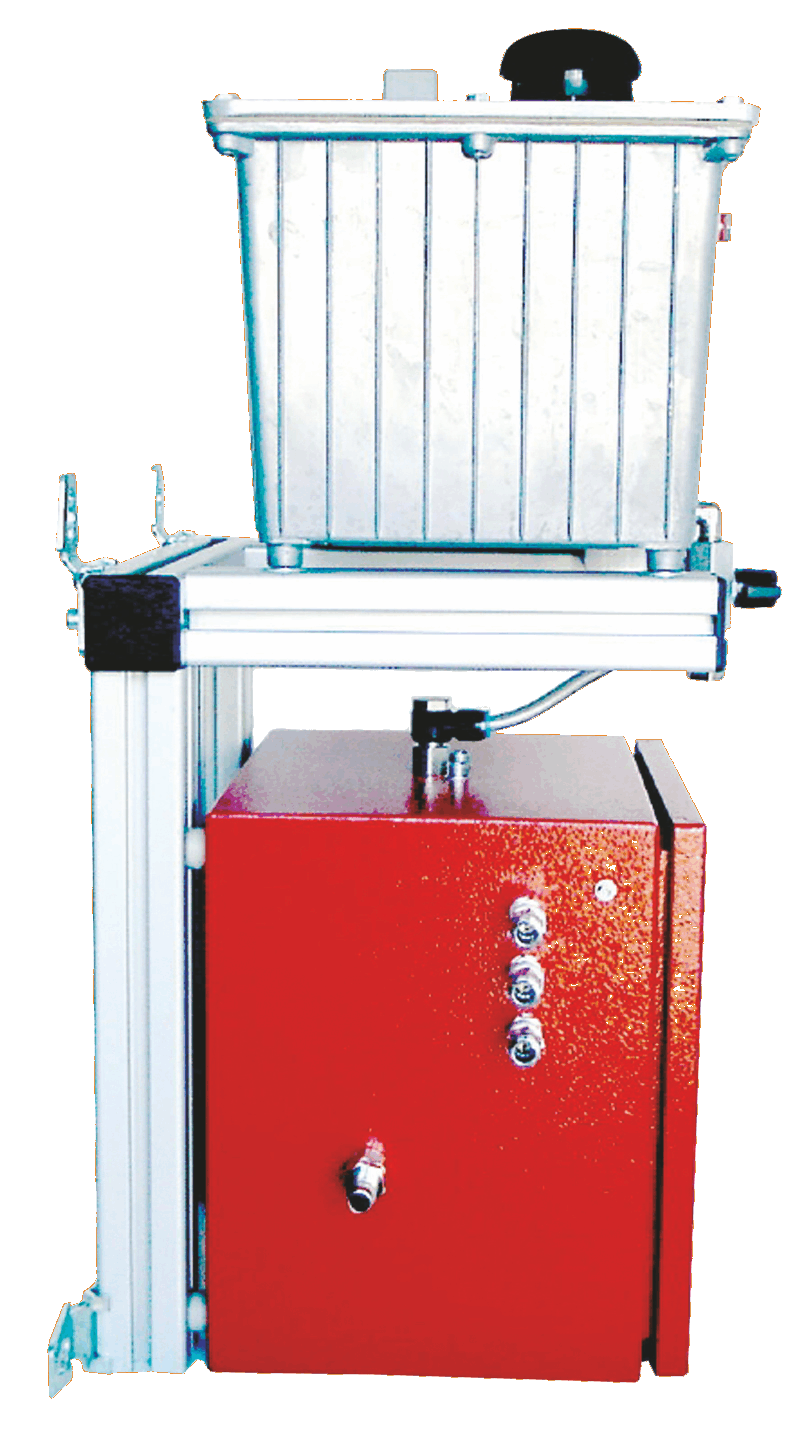

Housing assembly

- Reservoir 0.33 litre PA with screw cap, ventilation plug, drainage sieve.

- Reservoir 1.0-/2.0-/3.0-litre with plexiglass cylinder / NBR seals or glass cylinder / FPM seals. With filler neck, screw plug, detachable sieve, automatic ventilation, drainage sieve. Can be supplied with float switch min or min+max (in metal, potential-free, either NC or NO), or electric level monitoring (24V DC or 230V AC).

- Reservoir 6.0-/10-/17-/27-litre Aluminium. With filler neck, screw plug, detachable sieve, automatic ventilation, drainage sieve stopcock and fill level display. Combinated wall-housing bracket of sturdy aluminium construction 40x40 with 4 steel clips for wall installation. Can be supplied with float switch min or min+max (in metal, potential-free, either NC or NO), or electric level monitoring (24V DC or 230V AC).



WWall installation

- Reservoir 6.0-/10-/17-/27-litre Aluminium as discribed before. With wall bracket of sturdy aluminium construction 40x40 with 4 steel clips for wall installation. Can be supplied with float switch min or min+max (potential-free, either NC or NO).

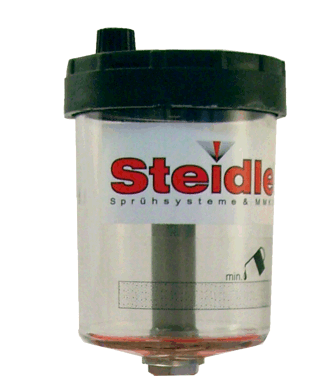

reservoir 0.33

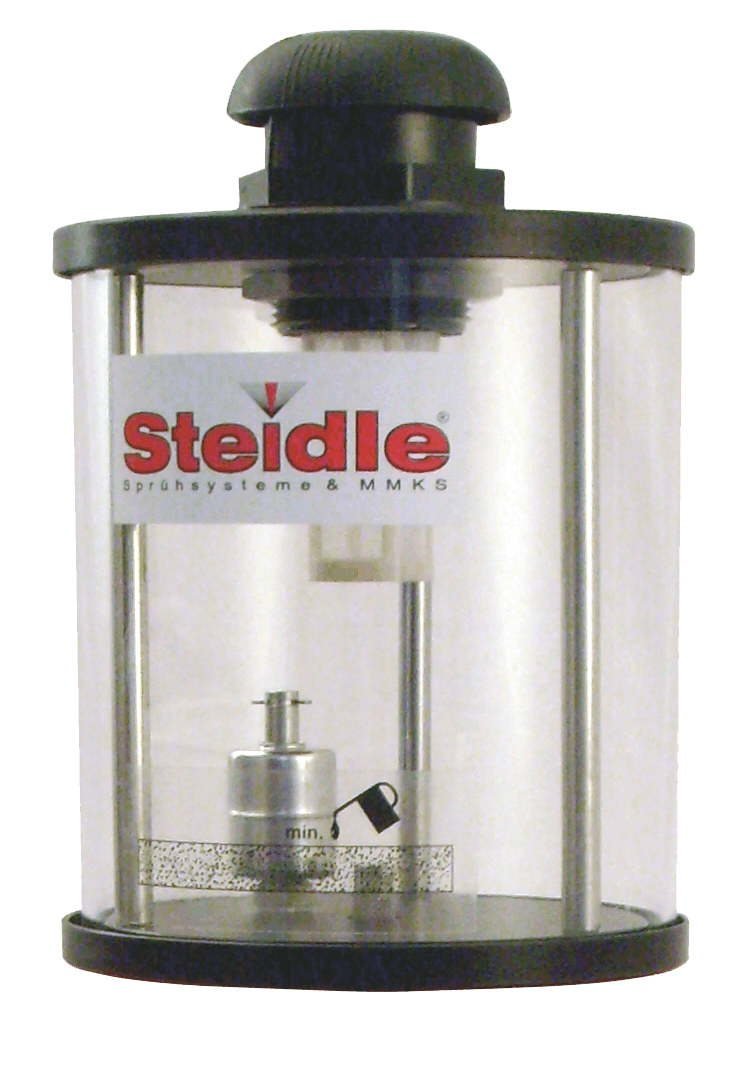

reservoir 1.0/2.0/3.0

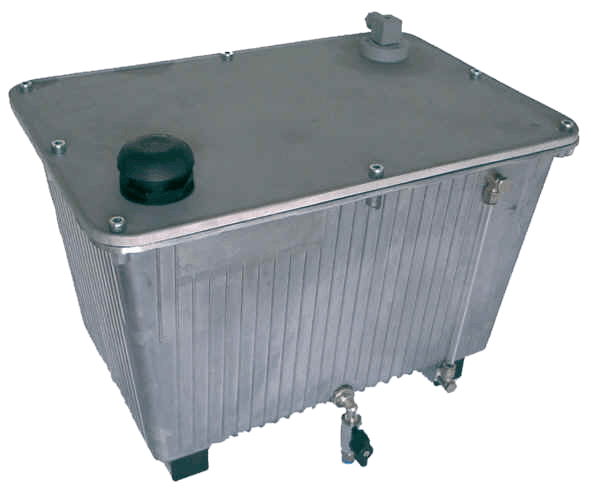

reservoir 6.0/10/17/27

reservoir 6.0/10/17/27

3. Drive (electric, pneumatic, manual or mechanic option):

- Solenoid valve 3/2 way (up to 3 nozzles 120 Nl/min, 4 nozzles and over 1300 NL/min with auxiliary actuation (for occasional manual switching on/off). Coil with plug in 24V DC, 24V AC, 110V AC or 230V AC. Cable bushing on left side of housing. In the case of separate actuation control device, each pump (or group of pumps) is controlled via a dedicated solenoid valve.

- Pneumatic valve 3/2 way (up to 3 nozzles 550 Nl/min, 4 nozzles and over 1300 NL/min. With push in connection ø4 for control air on left outer side of housing.

- Hand valve 3/2 way (600 Nl/min) as valve rocker on right outer side of housing.

- Mechanical valves 3/2 way (700Nl/min) as plunger, roller lever or knee roller lever in versions NC or NO. Delivered with the corresponding connectors and a 2m tube PUNØ8 to the unit.

4. 4. Feed tube

- Coaxial feed tube with EASY-COAXXXX^® system. Outer tube of strong rubber construction with robust metal sleeve Ø11, inner tube for delivery of medium, constructed of long-life PTFE Ø3. Smallest bending radius 50 mm. Standard length 3,000, non-standard lengths up to 20,000 available on request.

- Numbering clips on feed tube for easy assignment of pumps and nozzles.

5. Nozzle options:

- Nozzle copper tube Ø6 with EASY-COAX^® system. Can be bent once, most suitable for rigid laying. Nozzle head made of stainless steel with flow optimized construction for targeted, fogless spraying and changable nozzle tips Ø8. Standard length 300, non-standard lengths in increments of 50 can also be supplied. 2 clamps, a connection block (40x30x15 with 2 fixing holes Ø6) or a connection block with round magnet Ø80 can be supplied for mounting, if required. Standard nozzle tip is full jet, also available as flat-jet (spray angle approx. 75°).

- Nozzle multi link tube Ø17 with EASY-COAX^® system. Can be bent several times, particularly suitable for flexible laying. Nozzle head with flow optimized construction for targeted, fogless spraying and changable nozzle tips Ø8.  Standard length 300, non-standard lengths in increments of 50 can also be supplied. A connection block (40x30x15 with 2 fixing holes Ø6) or a connection block with round magnet Ø80 can be supplied for mounting, if required. Standard nozzle tip is full jet, also available as flat-jet (spray angle approx. 75°).

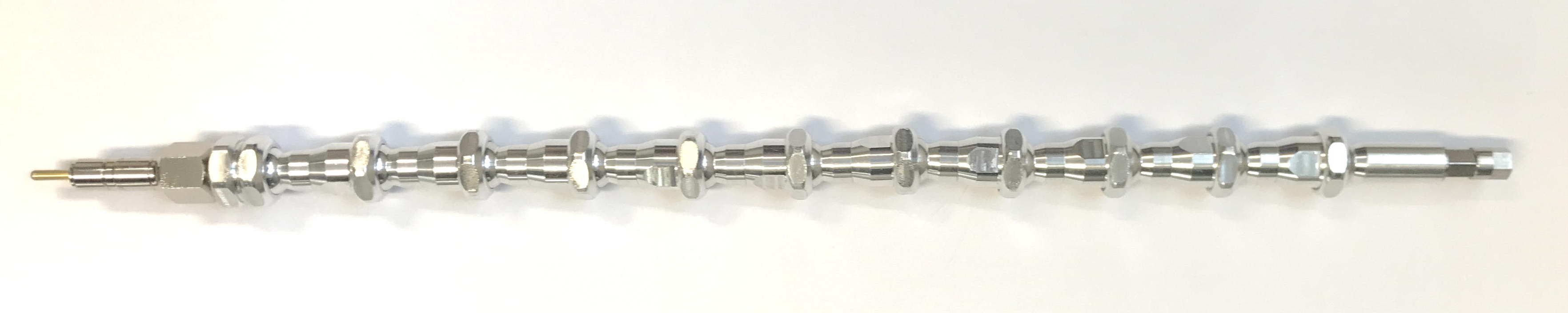

- Nozzle multi link aluminium tube Ø18 with EASY-COAX^® system. The movability of each segment can be adjusted, from flexible to fixed. Nozzle head made of stainless steel with flow optimized construction for targeted, fogless spraying and changable nozzle tips Ø8. Standard length 300, non-standard lengths in increments of 50 can also be supplied. A connection block (40x30x15 with 2 fixing holes Ø6) or a connection block with round magnet Ø80 can be supplied for mounting, if required. Standard nozzle tip is full jet, also available as flat-jet (spray angle approx. 75°).

- Nozzle flexible metal tube Ø9 with EASY-COAX^® system. Can be bent several times, particularly suitable for flexible laying. Nozzle head made of stainless steel with flow optimized construction for targeted, fogless spraying and nickel-plated protective sleeve Ø12. Standard length 340, but also available in 220 and 420. Connection block (40x30x15 with 2 fixing holes Ø6) with or without round magnet Ø80 can be supplied for mounting, if required.

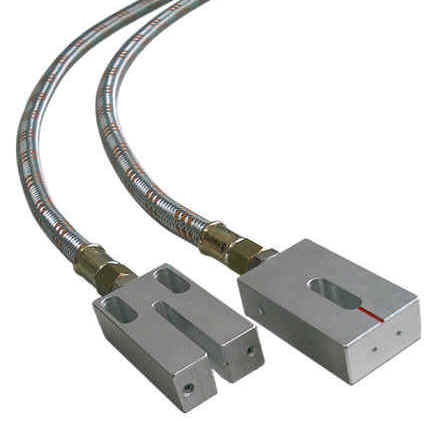

- Nozzleblocks (Aluminium) with EASY-COAX^® system. For 1, 2 or 3 feed tubes. With optimized spray points for band saws or circular saws and elongated holes for mounting 6x18 or 6x21.



6. Option

- 4 x round magnet Ø80 (mounted on the reverse side) for easy installation of the housing.

- 4 x mounting straps (mounted on the reverse side) for fixed installation of the housing
